Features

• Representation of the schema of the system in all its parts

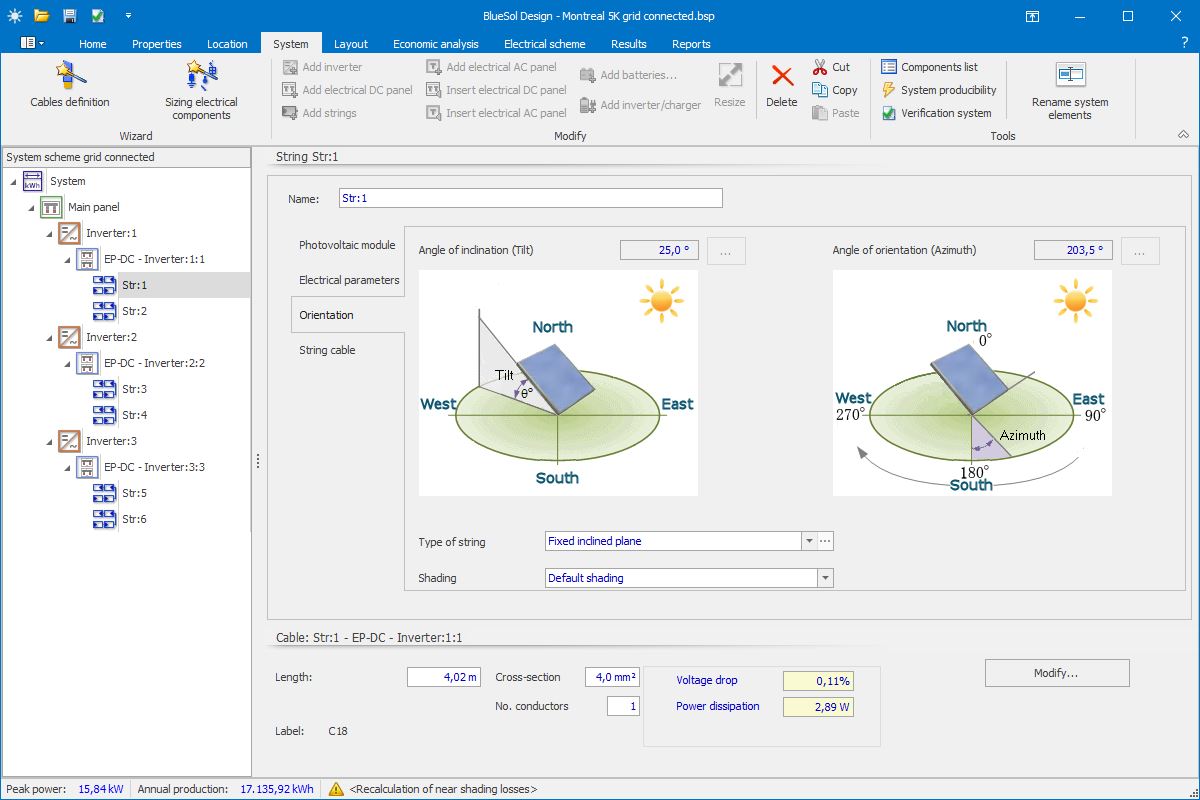

• Calculation of the irradiation on the plane of the panels
• Calculation of the producibility of the photovoltaic system
• Checks on the coupling between strings and inverters
• Checks on the coupling between strings and charge controller
• Checks on the coupling between battery bank and inverter-charger
• Calculation of cables according to CEI-UNEL tables
• Determination of the voltage drops and the flow rates of the cables

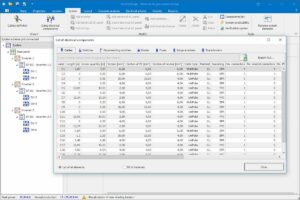

• List of the electrical components of the system

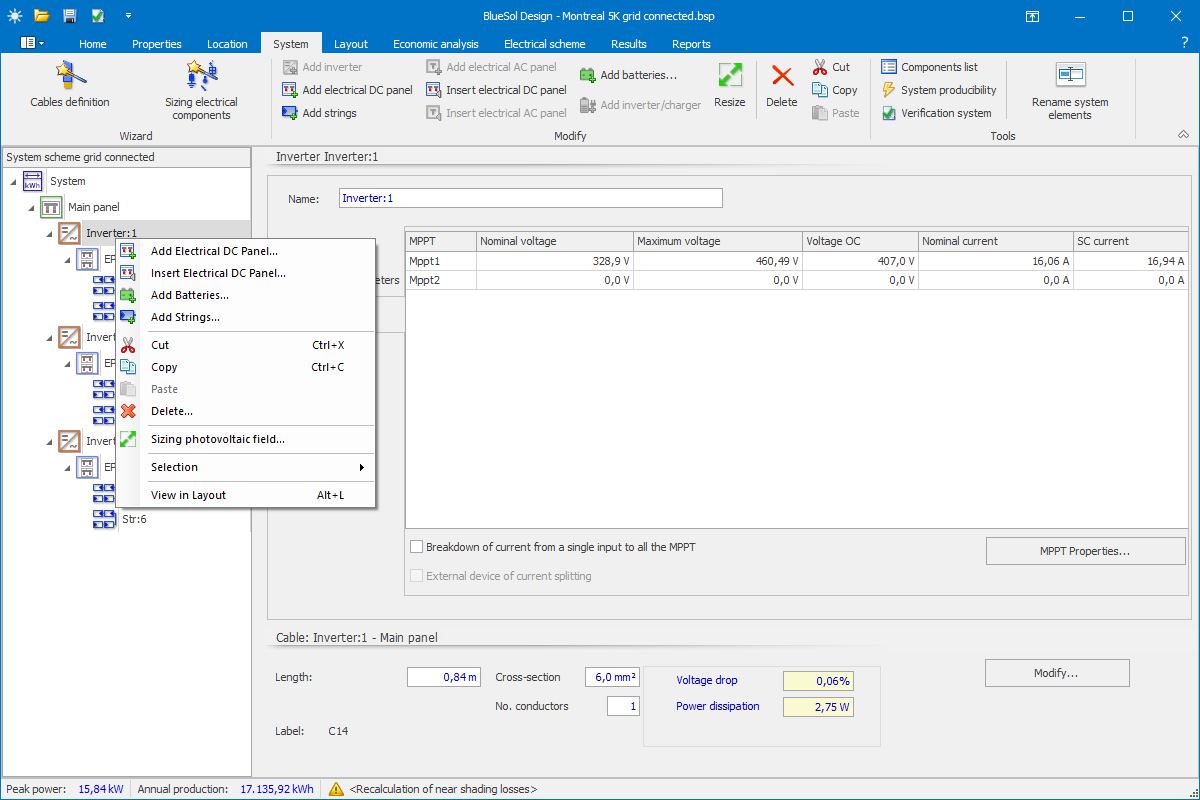

• Management of MPPT
• Microinverter management
• Solar tracker support: Vertical single axis tracker, Horizontal single axis tracker, Dual axis tracker
• Commands to cut, copy and paste the elements of the schema within the system schema
• Selection commands by type of the elements of the system

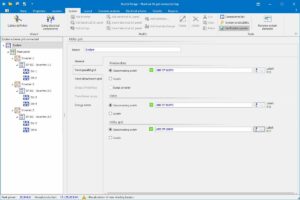

• Management of AC Panels connected to the main panel
• Ability to explicitly specify the cable lengths
• Verifications of the electrical components
• Management of the electrical protection groups in the panels
• Resizing Wizard photovoltaic fields

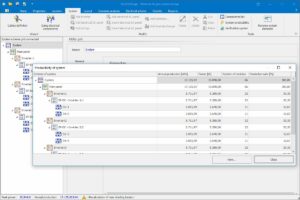

• Scheme of producibility of the sections of the system

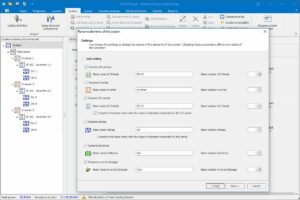

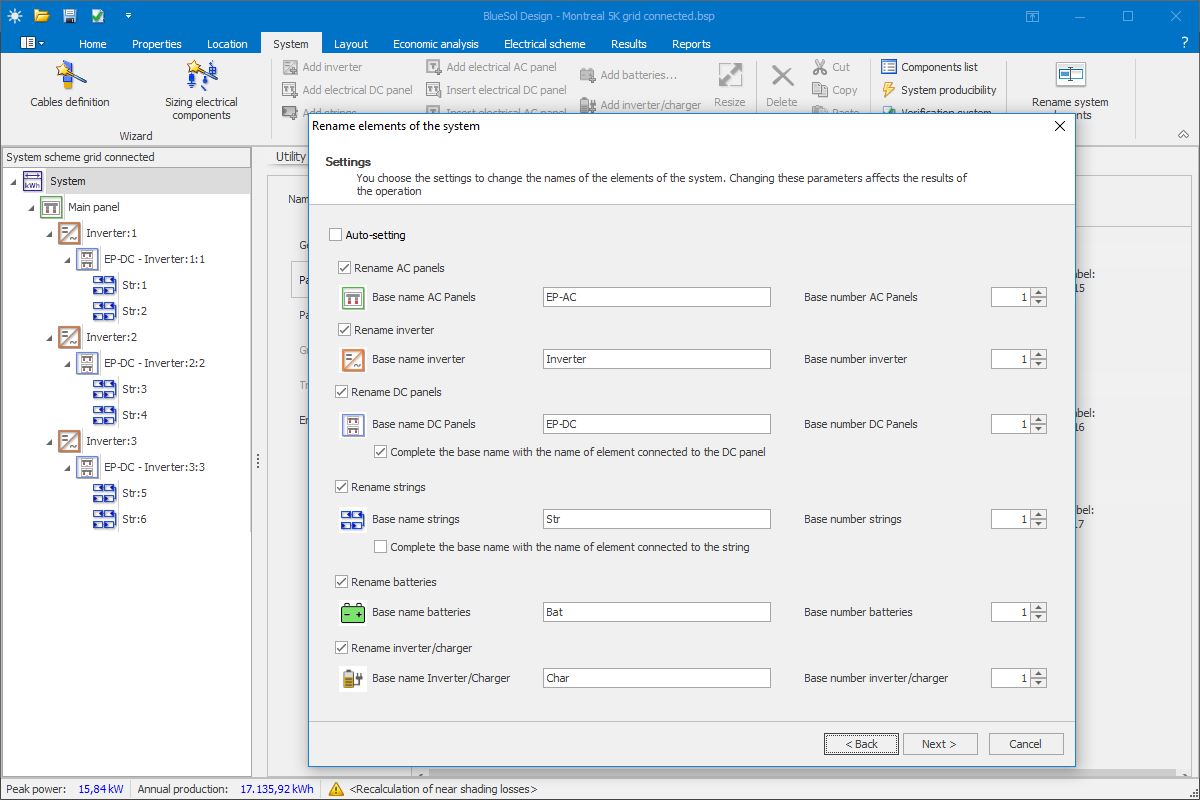

• Automatic rename of the system components
• Wizard for the dimensioning of the photovoltaic system
• Wizard for the definition of cables

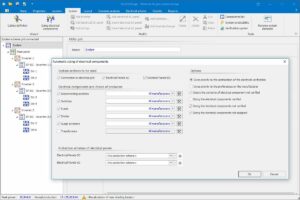

• Wizard for the dimensioning of electrical components
